GX dashboard / remote console confused

DIY
1

Setup:
Multiplus 2GX with Dyness G2 battery. Grid and PV meters (Iammeter) connected through Modbus TCP. PV installation AC coupled on AC IN with the GRID.

I seem to get all interconnected (battery via VE.CAN).

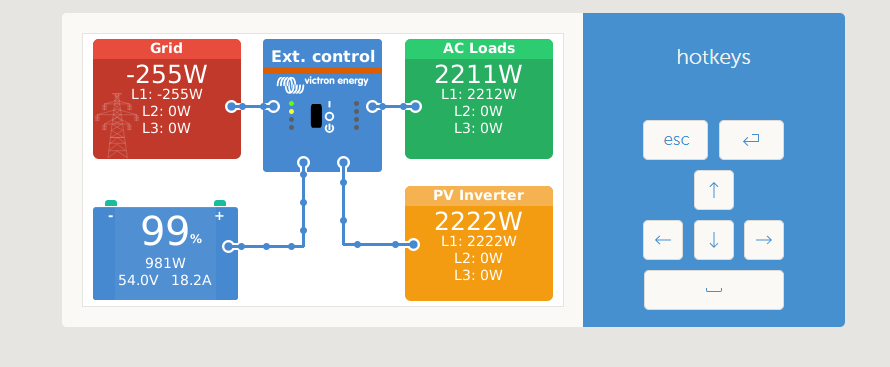

On the dashboard Grid value is refecting my Grid meter (can somebody confirm when I feed into the net the value should be negative), my PV value correctly refects the output of my Solar inverter and the Battery value correctly reflects the charging-load of the battery.

Whats does not make sense is the AC loads who seem to be +_ indentical to PV output instead of showing me the delta from PV output - GRID so in the picture it should be 2222W - 255W = 1967W.

Any suggestions what I am missing?

image830×364 22.9 KB

image890×367 29.3 KB

2

I would expect my PV power to show up at the AC grid side (as in the below picture) but not sure how I can change this.

image745×333 52.9 KB

3

My mistake, the IAMMETERS I use (cheap option it you need a reliable WIFI connected meter that is at a distance from your Victron installation) could be configured to be at the AC IN side or the AC OUT side (and I configured it incorrectly).

Now showing correctly with correct values!

image865×355 27.4 KB

4

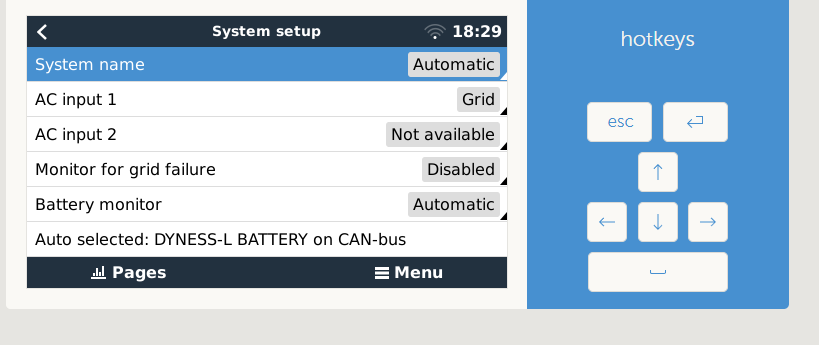

What device is selected as battery monitor?
Settings → System Setup → Battery monitor

5

image819×345 23.9 KB
