Hello dear community,

My system currently consists of 18.3 kWp and 28.8 kWh of storage.

It all started with a plug-in solar system, and then I got bitten by the blue bug. :smile:

I’m planning to add a Fronius Symo soon, as I can fit another 10 panels on a flat roof.

My modules are Solarfabrik Solo S4 Halfcut and DAH Solar DHM 54X10.

The entire system runs via ACout with a backup power switch.

Split across:

  • East: 18x Solarfabrik, 2x DAH plug-in solar system
  • West: 10x Solarfabrik
  • South: 14x DAH

My system itself consists of:

  • 3x Multi Plus II
  • 450/200
  • 250/60
  • Hoymiles plug-in solar system
  • Cerbo GX
  • 12x Pylontech 2000c

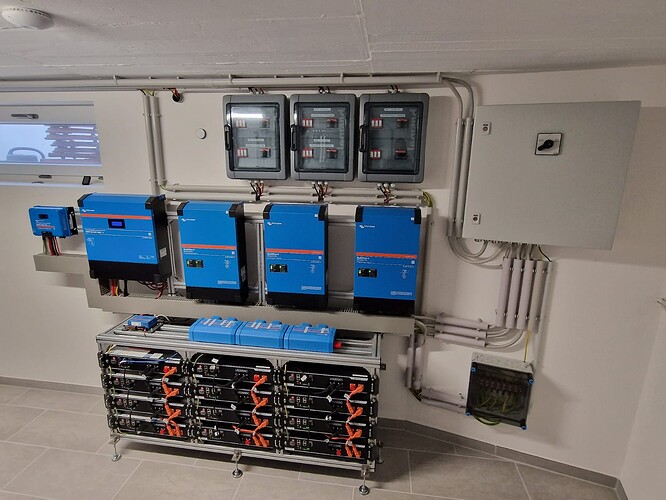

Overall view
Overall view1600×1200 187 KB

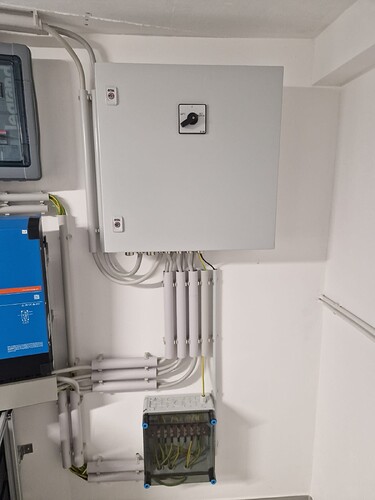

Wiring
Wiring1200×1600 90.6 KB

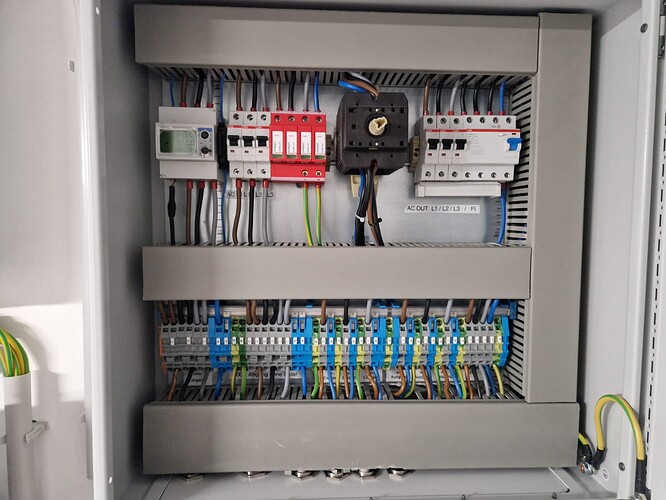

AC wiring
AC wiring1600×1200 172 KB

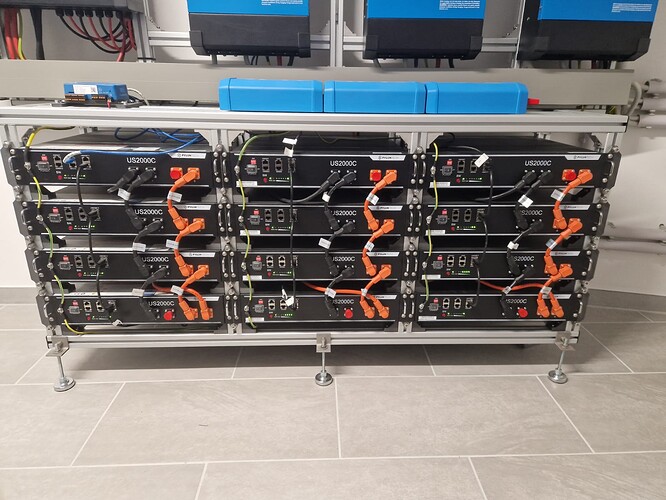

Pylontech view
Pylontech view1600×1200 210 KB

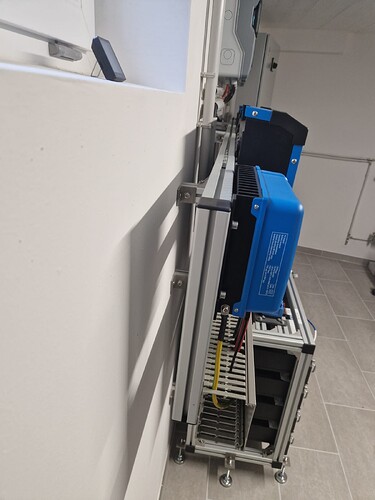

Wall clearance
Wall clearance1200×1600 112 KB

2

Very nice and clean construction, always impressed by square aluminium modularity !

3

Very nice looking setup! Mine certainly do not look as nice as yours.

I have 2 Victron systems.

2 X 48/5000/70 split phase with 2 X 250/70, Lynx Distributor, Lynx BMS, Cerbo GX

2 X 24/3000/70 split phase with 4 X 150/85, 2 X 150/35, Cerbo GX

My primary system is 48V but I have more storage capacity on 24V so through Node Red if the 48V system gets low or has high load the 24V system will provide support via the AC In 2 of the Quattro.
