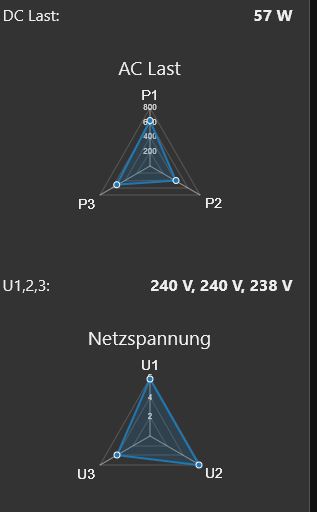

Ubuntu radar charts are super compact and fast for humans to recognize imbalance by its shape. Wether its the imbalance between parallel devices or the 3 phases where the diagram equals the wye / delta vectors. Our public grid shows hardly any differences for the voltages why they are zoomed in to see anything.
[{"id":"86be145731acd277","type":"victron-input-gridmeter","z":"a9b943e599c9cad0","service":"com.victronenergy.grid/40","path":"/Ac/L1/Voltage","serviceObj":{"service":"com.victronenergy.grid/40","name":"eHZ18"},"pathObj":{"path":"/Ac/L1/Voltage","type":"float","name":"L1 Voltage (V)"},"name":"ABB","onlyChanges":false,"roundValues":"1","x":130,"y":3100,"wires":[["166d4941cbb3e356"]]},{"id":"2b35633c7f2eb11d","type":"victron-input-gridmeter","z":"a9b943e599c9cad0","service":"com.victronenergy.grid/40","path":"/Ac/L1/Voltage","serviceObj":{"service":"com.victronenergy.grid/40","name":"eHZ18"},"pathObj":{"path":"/Ac/L1/Voltage","type":"float","name":"L1 Voltage (V)"},"name":"ABB","onlyChanges":false,"roundValues":"1","x":130,"y":3040,"wires":[["134e126146299568"]]},{"id":"915ba4a774f935f7","type":"victron-input-gridmeter","z":"a9b943e599c9cad0","service":"com.victronenergy.grid/40","path":"/Ac/L3/Voltage","serviceObj":{"service":"com.victronenergy.grid/40","name":"eHZ18"},"pathObj":{"path":"/Ac/L3/Voltage","type":"float","name":"L3 Voltage (V)"},"name":"ABB","onlyChanges":false,"roundValues":"1","x":130,"y":3160,"wires":[["a8be76bfefbfd7ed"]]},{"id":"134e126146299568","type":"function","z":"a9b943e599c9cad0","name":"Topic U1","func":"msg.topic = \"U1\";\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":280,"y":3040,"wires":[["eb2dafdb92402a9d"]]},{"id":"166d4941cbb3e356","type":"function","z":"a9b943e599c9cad0","name":"Topic U2","func":"msg.topic = \"U2\";\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":280,"y":3100,"wires":[["eb2dafdb92402a9d"]]},{"id":"a8be76bfefbfd7ed","type":"function","z":"a9b943e599c9cad0","name":"Topic U3","func":"msg.topic = \"U3\";\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":280,"y":3160,"wires":[["eb2dafdb92402a9d"]]},{"id":"eb2dafdb92402a9d","type":"join","z":"a9b943e599c9cad0","name":"","mode":"custom","build":"object","property":"payload","propertyType":"msg","key":"topic","joiner":"\\n","joinerType":"str","accumulate":false,"timeout":"5","count":"3","reduceRight":false,"reduceExp":"","reduceInit":"","reduceInitType":"","reduceFixup":"","x":450,"y":3100,"wires":[["8e20bf9ebf0d4e5e"]]},{"id":"8e20bf9ebf0d4e5e","type":"function","z":"a9b943e599c9cad0","name":"Zoom","func":"let values = Object.values(msg.payload);\nlet min = Math.min(...values);\nlet zoom = 4;\n\nmsg1 = {\"payload\" : msg.payload.U1 - min + zoom,\n \"topic\" : \"U1\"};\n\nmsg2 = {\"payload\" : msg.payload.U2 - min + zoom,\n \"topic\" : \"U2\"};\n\nmsg3 = {\"payload\" : msg.payload.U3 - min + zoom,\n \"topic\" : \"U3\"};\n\nreturn [msg1,msg2,msg3];\n","outputs":3,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":570,"y":3100,"wires":[["4bdd318dc0ff5cfd"],["4bdd318dc0ff5cfd"],["4bdd318dc0ff5cfd"]]},{"id":"4bdd318dc0ff5cfd","type":"ui_chart","z":"a9b943e599c9cad0","name":"","group":"b7a9ced364d46a19","order":6,"width":0,"height":0,"label":"Netzspannung","chartType":"radar","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":1,"removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":760,"y":3100,"wires":[[]]},{"id":"c4825e77b874eeb9","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/0/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/0/Ac/In/P","name":"/Devices/0/Ac/In/P","type":"number","value":-2883},"name":"Dev0","onlyChanges":false,"x":130,"y":3220,"wires":[["b12b0b1befc5da95"]]},{"id":"61e4b654a5373963","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/1/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/1/Ac/In/P","name":"/Devices/1/Ac/In/P","type":"number","value":-3003},"name":"Dev1","onlyChanges":false,"x":130,"y":3280,"wires":[["b12b0b1befc5da95"]]},{"id":"a14a9d3b066f8520","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/2/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/2/Ac/In/P","name":"/Devices/2/Ac/In/P","type":"number","value":-2951},"name":"Dev2","onlyChanges":false,"x":130,"y":3340,"wires":[["b12b0b1befc5da95"]]},{"id":"7532f4db58785c56","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/6/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/6/Ac/In/P","name":"/Devices/6/Ac/In/P","type":"number","value":-2256},"name":"Dev6","onlyChanges":false,"x":130,"y":3580,"wires":[["b12b0b1befc5da95"]]},{"id":"542ce0b02dbbf55d","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/7/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/7/Ac/In/P","name":"/Devices/7/Ac/In/P","type":"number","value":-2252},"name":"Dev7","onlyChanges":false,"x":130,"y":3640,"wires":[["b12b0b1befc5da95"]]},{"id":"3650aaf008eed654","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/8/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/8/Ac/In/P","name":"/Devices/8/Ac/In/P","type":"number","value":-2566},"name":"Dev8","onlyChanges":false,"x":130,"y":3700,"wires":[["b12b0b1befc5da95"]]},{"id":"f4881319e1175f02","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/3/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/3/Ac/In/P","name":"/Devices/3/Ac/In/P","type":"number","value":-2881},"name":"Dev3","onlyChanges":false,"x":130,"y":3400,"wires":[["b12b0b1befc5da95"]]},{"id":"d5d45000aa7e88cf","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/4/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/4/Ac/In/P","name":"/Devices/4/Ac/In/P","type":"number","value":-2780},"name":"Dev4","onlyChanges":false,"x":130,"y":3460,"wires":[["b12b0b1befc5da95"]]},{"id":"7dd84a56f82dfdaa","type":"victron-input-custom","z":"a9b943e599c9cad0","service":"com.victronenergy.vebus/276","path":"/Devices/5/Ac/In/P","serviceObj":{"service":"com.victronenergy.vebus/276","name":"MultiPlus-II 48/5000/70-50 (276)"},"pathObj":{"path":"/Devices/5/Ac/In/P","name":"/Devices/5/Ac/In/P","type":"number","value":-2519},"name":"Dev5","onlyChanges":false,"x":130,"y":3520,"wires":[["b12b0b1befc5da95"]]},{"id":"b12b0b1befc5da95","type":"join","z":"a9b943e599c9cad0","name":"","mode":"custom","build":"object","property":"payload","propertyType":"msg","key":"topic","joiner":"\\n","joinerType":"str","accumulate":false,"timeout":"6","count":"9","reduceRight":false,"reduceExp":"","reduceInit":"","reduceInitType":"","reduceFixup":"","x":350,"y":3460,"wires":[["d6600a2ae935f886"]]},{"id":"52443402eda149d5","type":"ui_chart","z":"a9b943e599c9cad0","name":"","group":"5d6aa5fa2cd38a95","order":6,"width":0,"height":0,"label":"L1","chartType":"radar","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":1,"removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":730,"y":3460,"wires":[[]]},{"id":"d6600a2ae935f886","type":"function","z":"a9b943e599c9cad0","name":"Topics Dev1-8","func":"msg1 = {\"payload\" : msg.payload.Dev0 *-1,\n \"topic\" : \"L1Master\"};\n\nmsg2 = {\"payload\" : msg.payload.Dev1 *-1,\n \"topic\" : \"L1Slave1\"};\n\nmsg3 = {\"payload\" : msg.payload.Dev2 *-1,\n \"topic\" : \"L1Slave2\"};\n\nmsg4 = {\"payload\" : msg.payload.Dev3 *-1,\n \"topic\" : \"L2Master\"};\n\nmsg5 = {\"payload\" : msg.payload.Dev4 *-1,\n \"topic\" : \"L2Slave1\"};\n\nmsg6 = {\"payload\" : msg.payload.Dev5 *-1,\n \"topic\" : \"L2Slave2\"};\n\nmsg7 = {\"payload\" : msg.payload.Dev6 *-1,\n \"topic\" : \"L3Master\"};\n\nmsg8 = {\"payload\" : msg.payload.Dev7 *-1,\n \"topic\" : \"L3Slave1\"};\n\nmsg9 = {\"payload\" : msg.payload.Dev8 *-1,\n \"topic\" : \"L3Slave2\"};\n\nreturn [msg1,msg2,msg3,msg4,msg5,msg6,msg7,msg8,msg9];\n","outputs":9,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":520,"y":3460,"wires":[["52443402eda149d5"],["52443402eda149d5"],["52443402eda149d5"],["52443402eda149d5"],["52443402eda149d5"],["52443402eda149d5"],["52443402eda149d5"],["52443402eda149d5"],["52443402eda149d5"]]},{"id":"b7a9ced364d46a19","type":"ui_group","name":"Spalte4","tab":"52c4a1be8450fe1a","order":5,"disp":false,"width":"6","collapse":false,"className":""},{"id":"5d6aa5fa2cd38a95","type":"ui_group","name":"Spalte1","tab":"52c4a1be8450fe1a","order":1,"disp":false,"width":"6","collapse":false,"className":""},{"id":"52c4a1be8450fe1a","type":"ui_tab","name":"Gottlieb-Daimler-Microgrid","icon":"dashboard","disabled":false,"hidden":false}]
