Ess gridsetpoint is being ignored

Node-RED
,
1

Hi all, I have a following setup: Multiplus II managed by a raspberry PI, connected to the battery (JK BMS) no solar.

I am using a “virtual” mqtt based grid sensor which is visible and recognised by the system. The issue is that the refresh rate of the sensor is 10s, which means that with ESS set in mode 1 it massively undershoot and then overshoot with huge swings due to the fact that it doesnt see a reflection on the grid.

From what I’ve read, it should be possible to manually set the ESS in external mode and use the Grid set-point to a desired outcome, and victron will adapt to the setting (as long as its within sensible values). So, for example, if my grid import is 500w, I set the value to -500 and Victron should take around 500w from the battery.

Well, thats not happening. Setting the value to -500, -1000, 1000 brings absolutely no differences.

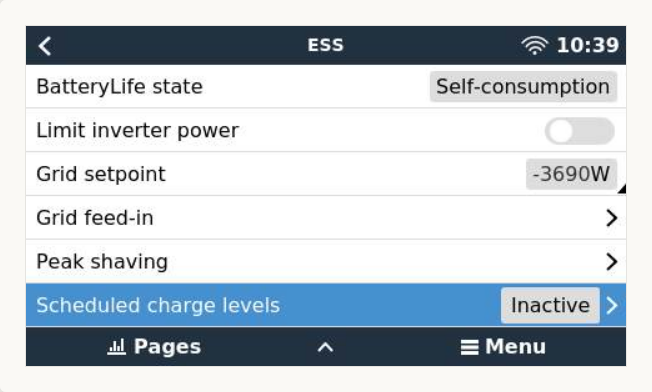

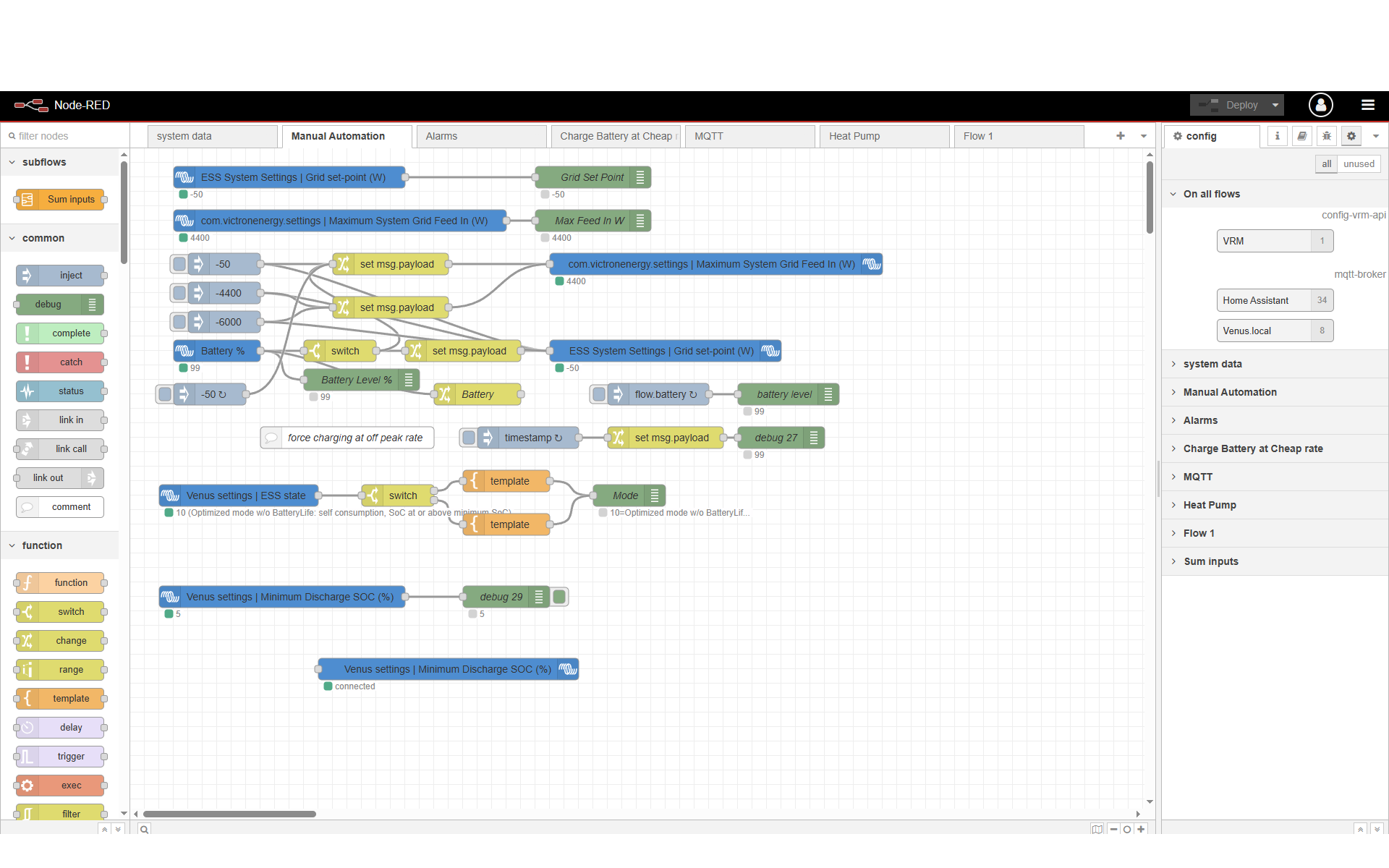

image2402×878 131 KB

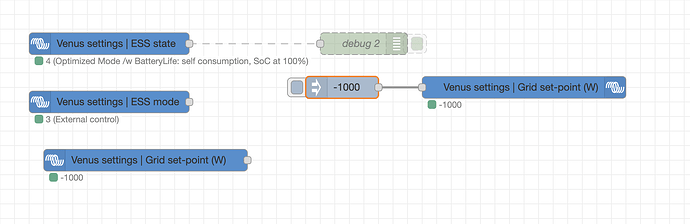

image1896×618 55.5 KB

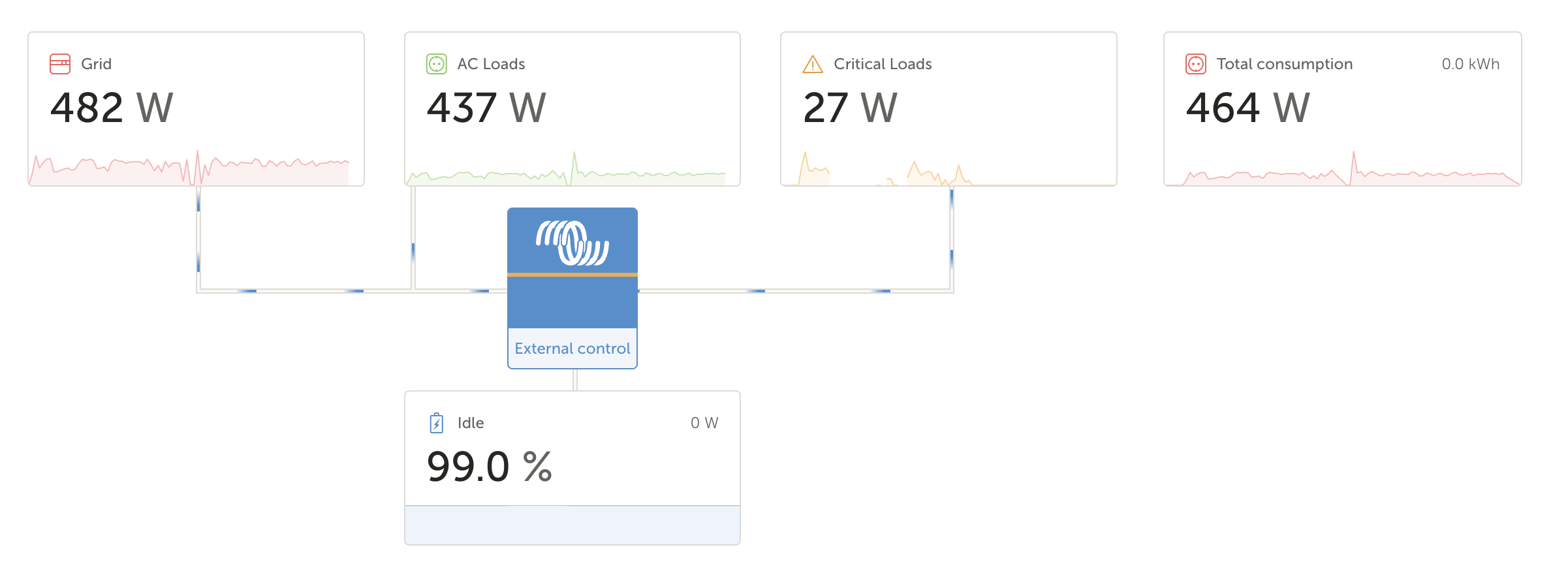

If I set the ESS to battery optimized, it will happily begin to use the battery but with huge swings (but at least that should confirm that it is able to discharge properly).

Am I missing something obvious here?

2

I kind of managed to obtain what I want when setting the ESS in mode Battery Optimized with

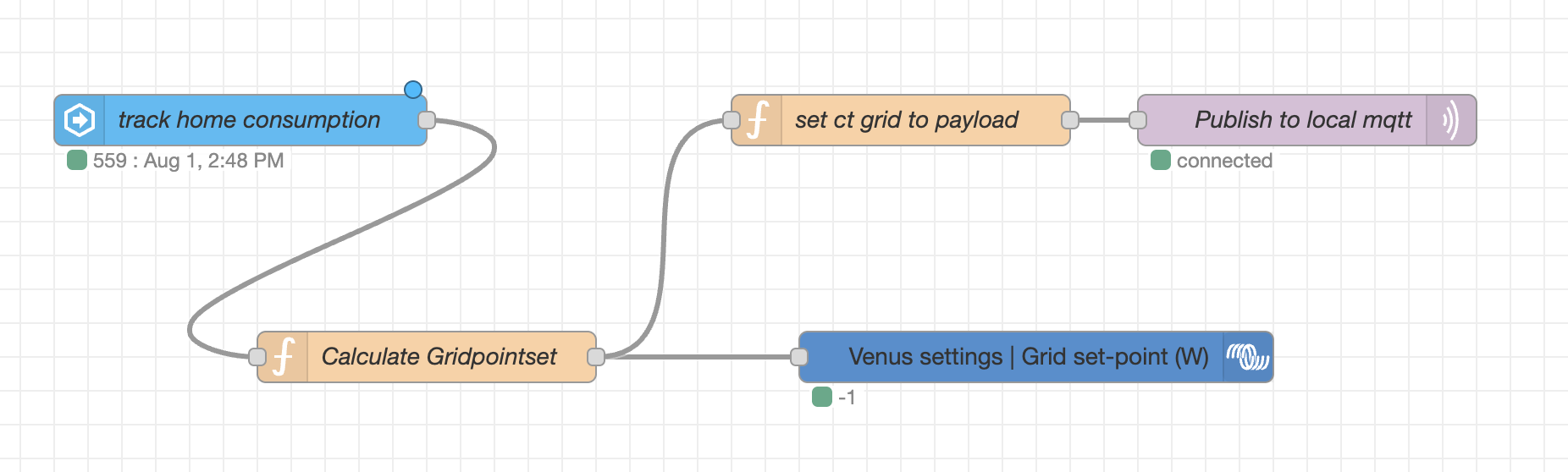

image1852×558 43 KB

Where the calculate gridpointset is

let currentSet = parseFloat(context.get("currentSetPoint")) || 0
let gridPower = parseFloat(msg.payload);
let newCurrentSet = currentSet - gridPower;
node.warn({
   "currentSet": currentSet,
   "gridPower": gridPower,
   "newCurrentSet": newCurrentSet
});
context.set("currentSetPoint",msg.payload);
msg.payload = newCurrentSet;

return msg;

and the ct meter is set to the same value of newCurrentSet. This achieve a close to the truth battery discharge, but due to ESS smoothing, currentSetPoint begin to ramp up and up which is too desirable (and the whole thing is pretty ugly as well)

3

If you only want to control the grid setpoint, use mode 2 and let the system handle all the other values.

With ESS Mode 3, the grid setpoint has no impact, because the multiplus is no longer adjusting it’s output based on that. You then have to provide a explicit InverterPowerSetpoint for the Inverter to use.

4

Sooo the documentation (ESS mode 2 and 3 [Victron Energy]) is completely wrong? 3.3 paragraph states that

When controlling the Multi using software running on the GX device, you should set Settings→ESS→Mode to external control. The following dbus paths can then be adjusted on the com.victronenergy.vebus.ttyO1 service.

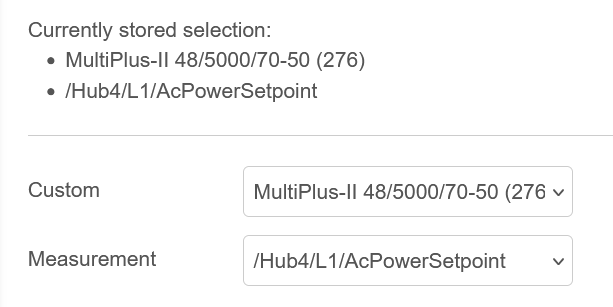

a) Grid Power Setpoints - /Hub4/Lx/AcPowerSetpoint
This includes a path for each available phase
/Hub4/L1/AcPowerSetpoint (setpoint for L1)
/Hub4/L2/AcPowerSetpoint (setpoint for L2, where available)
/Hub4/L3/AcPowerSetpoint (setpoint for L3, where available)
When set to a positive value, power will be taken from the grid on phase x.
When set to a negative value, power will be fed into the grid on phase x.
b) Disable charger - /Hub4/DisableCharge
0: Charger is enabled.
1: Charger is disabled.
c) Disable Feed-in - /Hub4/DisabledFeedIn
0: The inverter is enabled to feed power into the grid.
1: Inverter will not feed power into the grid and the battery will not discharge.
When both Charge and Feed-in is disabled, the Multi will go into Passthru.
In case of grid failure, this parameter will be ignored and power will be supplied to AC Out.

Or is it referring to the hub4 functionality exclusively (but then again, the documentation is for Ess)? In that case is there any documentation which describes the ESS functionality in depth?

5

I think the documentation is correct but the catch is “setpoint for Lx” is in reference to the inverter and NOT to an external grid-meter or even the meter of the inverter itself. This is explained in 3.1.

So setpoint -100 on L1, will make your inverter provide 100W. If your consumption is 200W, you will also draw 100W from the grid.

I do agree calling everything behind the inverter “the grid”, might lead to confusion but here we are.

I use mode-3 when I want to “stop the L2/L3 inverters” because the loads are < 50W and compensate them using the L1 inverter. (efficiency..)

This is part of a DESS trade flow which forces DESS into green-mode when no trading is done.

[
    {
