Accessories for the EasySolar II-GX

Other languages Spanish and Portuguese
, ,
1

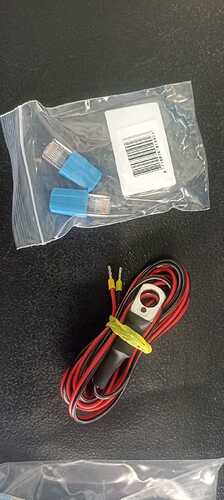

When I bought this equipment, it came with these accessories: a cable with terminals, which I assume is for the battery to enable a sensor, and a couple of RJ45 plugs. I’d like to know what they are for and where to connect them to the equipment.

a
a1600×719 102 KB

b
b719×1600 133 KB

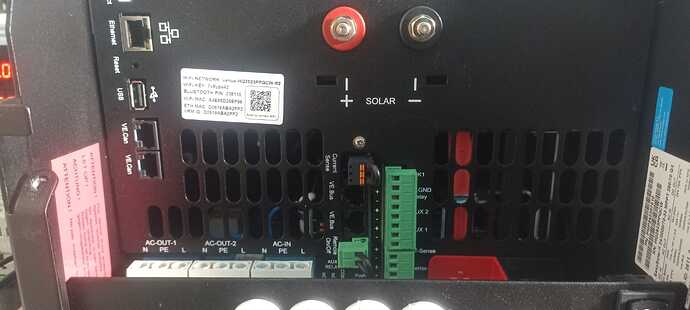

Which part of the equipment should I connect these accessories to? I’ve attached images.

2

Optional connection used with lead acid batteries.

Use with the can connection if you have a bms connected.

3

Just to expand on LX, the plugs with the blue tops are the VE-CAN terminators, don’t plug these into Network or VE-Bus ports.
