Adding 8 x Pylontech US5000 to existing 8 x Pylontech US5000 off grid -- best practice?

DIY
, ,
21

30-40mV is pretty normal for Pylontech, I would not worry.
In fact the battery will start balancing only if the difference is bigger than 30mV.

Sometime ago I’ve saw on another forum, that Pylontech had implemented, on the new firmware, some functions for reporting on CAN bus all information that are found over RS232. More of that, on the same bus, provisions for updating the firmware were put in place..

It made me curious and I’ve reversed engineered their firmware to confirm this and found out some surprises…
Later saw some docs from Pylontech that confirmed this.

The batteries usually communicate on CAN2.0A standard, on 11 bit identifier. (0x350 - 0x380 range).
To my surprise, it also use CAN2.0B standard and responds on several 29 bit identifiers.

These are using for control, upgrade and extended commands.

For responding to your question, you need to have access to Venus OS command prompt (SSH) and use the cansend/candump utilities.

One of the extended level commands is to send an all zero frame to 0x04000000 CAN identifier.

The master will respond with the information for all modules, grouped on 0x04AABBCC identifiers, where AA is group number, BB battery number on that group and CC is the type of info. The frame bytes represent the info for that info type.

I will try to find those docs again or compile my findings for this.
I’ll be back… :grin:

2 Likes
22

And here is the promised info.
Depending on how old is the firmware, not all fields will be filled.
But, of course, it must be newer than 2021, like I’ve said.

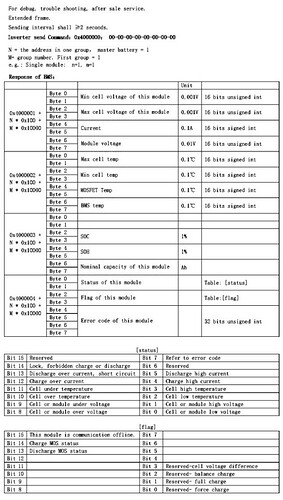

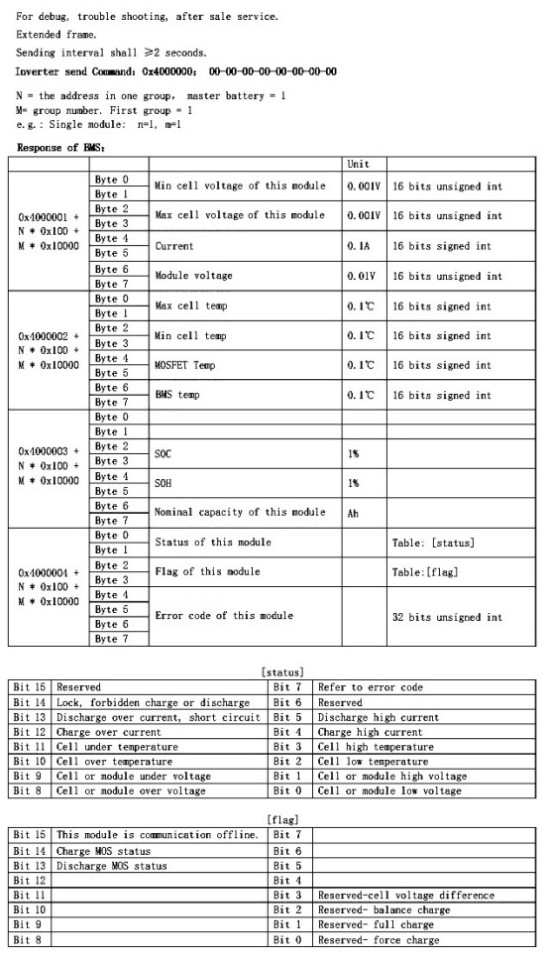

can-bms-info
can-bms-info545×960 126 KB

1 Like
23

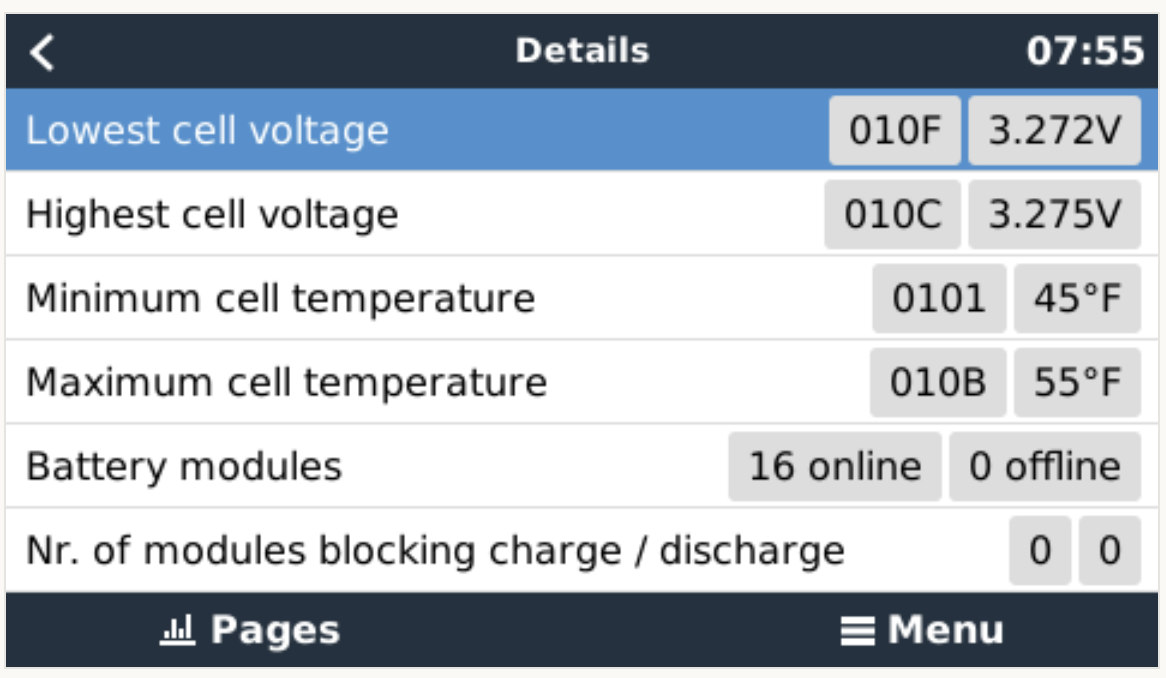

That batteries are doing well even though I haven’t seen them above 99% yet. Unfortunately I do have a 10F temperature delta given that some batteries are in a shelf and some are not. I’m not sure if that will matter or not though. I may need to rig up some insulation to put over the batteries up top.

delta
delta1166×678 118 KB

24

The temperature sensors in the Pylontech housings are relatively close to the resistors used in the balancing process.
Here, “electricity is burned off" to bring the cells to the same level. Batteries that are warmer than others are undergoing balancing. This is easy to observe :slight_smile:
Unless they are already burning… just kidding :slight_smile:

1 Like
25

Which sensors? They are 17… :smiley:

Based on last picture, none of the 16 batteries are undergoing balancing…
