I have no idea whether the inverse is possible as well: get dbus changes pushed over MQTT to your application. If that is possible, my logic still holds, if not, not. Anyway, it took so much effort to make Victron’s DESS behave the way it is advertised, that the step to reverse-engineer their scheduler and be done with, is al but a mere final plunge into the realm of HA (or a sort like automation platform). Which I guess is not coincidentally the path you are on.
Following up on my previous post: after thinking about this for a while, it seems that we must convert the exact numbers we have as output from the LP to an “intent” and have to set the values based on that.
To get a better feel for how things currently work, I closely observed the relation between the schedule graphs on the VRM page and the actual schedule. I have learned the following:
Allow Grid Feed In is always enabled, except if the export prices are negative. This one is thus easy to set.
Strategy is used in a way I didn’t entirely expect. I have observed the following scenarios yesterday evening (when there was no PV)
- If the plan only included “battery to load” flows, the strategy was set to self-consume. In this mode, the target SoC isn’t relevant. All load will be taken from the battery (because we want to self-consume).
- If the plan only included “grid to load” (so no battery usage), the strategy was set to pro battery and the target SoC was equal to the current SoC. In pro battery, all excess load will be taken from the grid, so if both SoC values are equal, everything is excess load and thus the grid will be used for everything.
- If the plan included “grid to battery”, the strategy was set to pro battery and the target SoC was set higher than the current SoC. This also seems to make sense.
I haven’t observed target soc and pro grid yet, and also plan to do some observations during PV production.
Restrictions puzzle me a bit. There are 4 possible values: “No restrictions between battery and the grid”, “Grid to battery energy flow is restricted”, “Battery to grid energy flow is restricted”, “No energy flow between battery and grid”. To me it seems that this means no restrictions, restriction in one direction, restriction in the other direction and restriction in both directions. However, I think “grid to battery restricted” was active on my system while it was actively charging.
I think these limitations are primarily due to German law. We have some rather silly restrictions that, under certain circumstances, force you to choose whether to draw power from the grid into the battery or vice versa. Or even prohibit any energy flow between the battery and the grid altogether. I don’t think Victron would have received approval for the German market without these options/restrictions.
1 Like
Nice work @bartm , I read all your stuff and I hope I can contribute again next week. Ironically, I have to study now for my LP course, I neglected it, and I made this instead
.
What @Sarowe1990 says makes sense. The ev charging station also has a grid restriction pin to comply with §14a EnWG in the German market. The pin is there to enable the grid operator to reduce the charging power to help maintain grid stability.
1 Like
These regulations are incredibly stupid, but we Germans like to protect our energy companies from too much competition. (Caution: May contain traces of sarcasm)
I am experimenting with this at the moment.

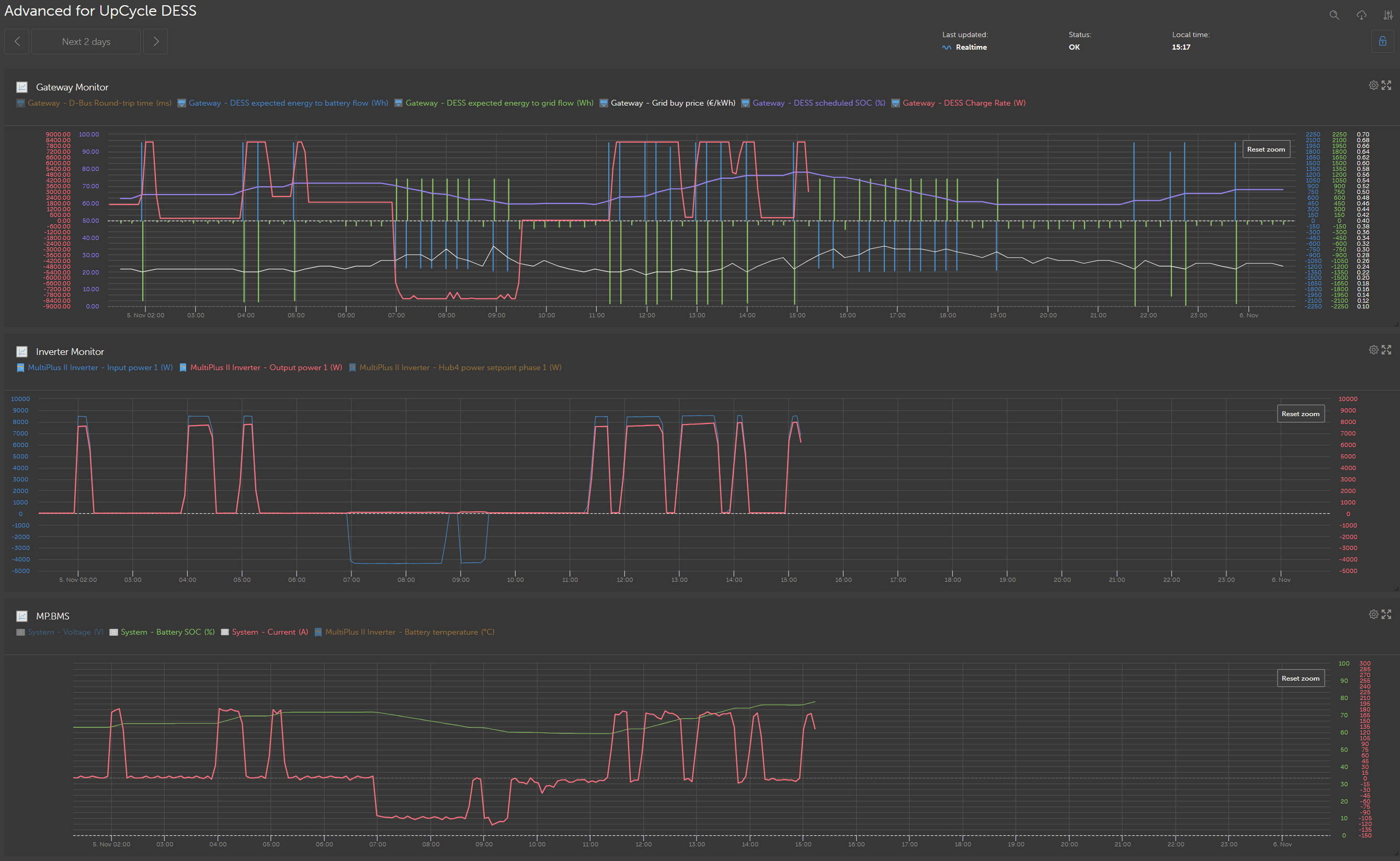

I have extended our flow to provide change signals every time SoC, Strategy or Restrictions change for the d-bus schedule (the local 12 hours ahead forward schedule slots). Combined with a 15 minute timer this provides a timely trigger to re-evaluate and adjust the d-bus schedule (for the current timeslot only), generally speaking 8 times an hour.
At every trigger I retrieve an updated vrm schedule object and read the vrm_soc_plan, vrm_to_battery_fc and vrm_to_grid_fc values for the current timeslot. High vrm_to_battery signals ‘Buy’, high vrm_to_grid signals ‘Sell’ and neither signals ‘Idle’.
During ‘Buy’ I update the d-bus INT SoC with an up-rounded value of the float vrmSoC, During ‘Sell’ I do the same but with a down-rounded SoC.
When ‘Idle’ (not buy or sell) I set the d-bus schedule Restriction (for current time-slot) to 3: “No energy flow between battery and grid”
And every 15 minutes and with every in between d-bus schedule update, this process repeats.
The result: No more ‘throttling’ during buy and sell timeslots, no more charge / discharge ‘overshoots’ right after buy and sell timeslots. AND as far as I can see at the moment this still leaves the reactive strategy logic intact. The inverter either goes into ‘Idle’ (ACin = ACout) OR it goes into ‘selfconsumption’ (ACin = Grid setpoint) depending on the actual battery SoC in relation to the scheduled SoC.
This is the best behaving DESS (Trade only, no PV) modification I have tried yet. And because this modification has minimal interference with the VRM scheduler, it might proof to work well for DESS with PV and irregular large loads as well. All I wish for now is the ability to send the vrm scheduler an independent future SoC target (that I have been arguing for ad infinitum ).
For ‘Buy’ or ‘Sell’ timeslots it is enough to set the target SoC (INT) for the current timeslot above or below the expected/required battery SoC at the end of that timeslot, and set the strategy to pro_battery (Buy) or pro_grid (Sell) accordingly. What to do with the timeslots in between depends on your use case and energy contract details. In NL the grid acts a free lossless AC battery (until saldering ends) which logically makes ‘self consumption’ useless unless you have a surplus of PV energy. That’s why we set the bi-directional restriction 3: “No energy flow between battery and grid” unless we buy or sell. With PV / EVCS involved you could try directional restrictions to suit your needs.
If you don’t care about VRM or Node-RED dashboard graphs, and have no need to insure your local Cerbo GX DESS scheduler keeps working (for up to 12 hours) when the VRM scheduler fails to push updates, you can simply set all 48 d-bus schedule entries to the same scheduled SoC, Strategy and Restrictions every couple of minutes (don’t forget to shift the start/end times every hour though)
As far as I can see, the DESS execution process only looks at target SoC, Strategy and Restrictions for the current timeslot . The only complication is that you cannot set those directly (well you probably can in ESS mode) and need to set the forward looking d-bus schedule slots instead. The VenusOS DESS process then copies them to the active current timeslot d-bus entries. You might want to look at the source code to see if there are ways around that. We only want to modify the d-bus schedules as little as needed away from the VRM schedules to make the DESS system as a whole behave more rational and predictable. For that it suffices to focus on the first eight (8) timeslots only, as it hardly ever happens that the scheduler is over an hour late with updates.
PS most charging done by a secondary HF boost charger (fixed DC current) wired to ACout (red line in middle graph), The MP-II only adds a few charging amps until the ACin current limit is reached (blue line in middel graph). Allmost all AC loads run from a secondary HF DC-to-AC inverter, mostly a small electric heater, to ensure the maximum inverter power is available to feed-in to the grid during ‘Sell’ timeslots.
Almost perfect, the ‘missed’ timeslots are related to the dayly schedule update and work on the node-red flow. Battery costs are deliberately set very low for testing.
I observed some more strategies and wrote it down in pseudocode to have a better idea what we are still missing. I have made no progress in how the restrictions are set.
if (hasG2B) {
// There's a grid charging flow which probably means electricity is cheap.
// This means we'll want to use the grid as much as possible and store PV in the battery.
// So we set pro-battery (and a target SoC that's higher than current SoC)
strategy = Strategy.proBattery;
} else if (hasB2G) {
// There's an active discharge to grid which probably means electricity is expensive.
// This means we'll want to use the battery for our own load as much as possible and export excess PV to the grid.
// I haven't observed this case yet, but it's presumably pro-grid (and a target SoC lower than current SoC)
// TODO: strategy remains unknown
} else {
if (deficitOrNoPv) {
// We have a PV deficit to cover our planned loads.
// Based on how this deficit is covered according to the plan, we can use the same handling for unexpected loads.
// TODO: technically, if we have an unexpected PV surplus, we might also want to inject that into the grid. We don't handle that yet. If we do, we must also adapt the restrictions.
if (hasB2L && !hasG2L) {
// The battery is used to cover the deficit, so we'll do the same for unexpected loads.
strategy = Strategy.selfConsumption;
} else if (hasG2L && !hasB2L) {
// The grid is used to cover the deficit, so we'll do the same for unexpected loads.
// Target SoC should be close to current SoC or the reactive strategy will ignore the grid restrictions
strategy = Strategy.proBattery;
} else if (!hasB2L && !hasG2L) {
// Predicted PV is exactly equal to predicted load, so there's no deficit handling in the plan.
// We have thus no indication of how to handle unexpected loads.
// TODO: simulate to determine if pro-battery or self-consumption is better? Or use a price indicator?
strategy = Strategy.selfConsumption;
} else {
// PV deficit is served by both battery and grid.
// We have thus no clear indication of how to handle unexpected loads.
// I haven't observed this case yet, but I think it makes sense to use the grid here because the mix probably indicates that the battery is low.
// TODO: strategy remains unknown
}
} else if (pvCoversLoad) {
// In this case, PV is expected to cover all load and we have excess PV.
// Based on how this excess PV is used according to the plan, we can use the same handling for unexpected excess PV.
// It is however less clear how unexpected loads should be covered in this case.
if (hasPV2B) {
// If we see PV2B -> use self-consumption to cover the unexpected loads by battery or pro battery to cover by grid.
// TODO: simulate to determine if pro-battery or self-consumption is better? Or use a price indicator?
strategy = Strategy.selfConsumption;
} else {
// In this case, we see PV2G, but I haven't observed this yet.
// TODO: strategy remains unknown
}
} else {
// I don't think we can reach this branch?
}
}
where?
This should give you all a real good head start. It’s not complete, you’ll have to investigate how to fill in the blanks. And do get the boolean logic ultimate nodes first:
[
{
